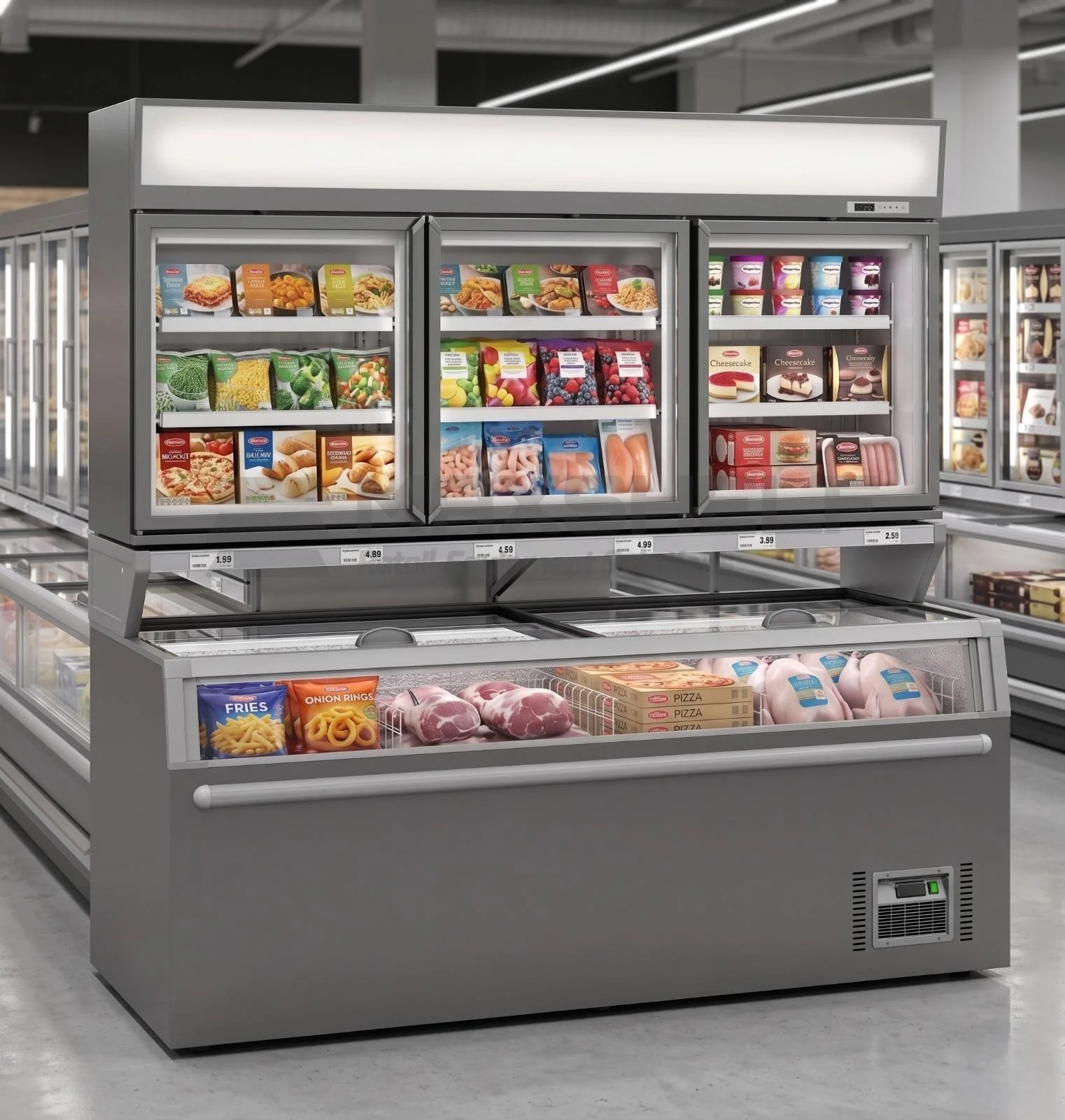

Triple Door Wall-Site Top Case Combi Freezer

The VMAX Triple Door Wall-Site Top Case Combi Freezer combines two purpose-built freezer cabinets into a single, high-capacity wall-site display. The upper triple glass door wall unit delivers a traditional upright freezer display with frost-free fan cooling, three rotating glass doors and six adjustable shelves — ideal for bagged, boxed and individual frozen products that benefit from clear visibility at eye and chest height. Below it, the three-door chest freezer base provides a deep, direct-cooled bulk storage and display zone with sliding glass lids and internal wire baskets — suited to high-volume frozen lines, loose stock and bulk SKUs. Together they deliver a combined 992L net capacity across 2100mm of wall width, creating one of the most complete frozen food display formats available for supermarket and large convenience retail environments.

Two Cabinets, One Display — Maximum Frozen Range

Most freezer display units make a choice between upright glass door visibility and chest-style bulk capacity. This combi format makes no such compromise. The wall unit keeps branded and individual-portion products upright, well-lit and immediately visible behind three full-height glass doors — driving impulse purchase and brand recognition. The chest base sits directly below, holding bulk lines, multipacks and loose stock in deep wire-separated bays behind sliding glass lids — maximising the amount of frozen product on the shop floor without requiring additional floor space. Both units are supplied together, pre-matched in finish and aligned in width, for a seamless installation against any wall or partition.

Key Features

• 992L combined net capacity – 646L chest base + 346L wall unit; two independent freezer compartments
• Triple glass door wall unit – 3 rotating doors, side-to-side opening from left; round lock standard on each door
• Frost-free wall unit cooling – 3 evaporator fans maintain even -18°C to -22°C across all shelf levels
• 6 adjustable white wire shelves in wall unit – 16mm wire spacing for flexible product configuration
• Three-door chest base – sliding glass lids with direct cooling at -15°C to -22°C
• Internal wire baskets in chest base – steel wire, white dip-coated, with basket supports and divider grilles
• Illuminated canopy – flat canopy with light cover on wall unit; internal LED lighting throughout both cabinets
• 38mm price bars on wall unit shelves – white, without cover, for clean shelf-edge labelling
• Electronic thermostat on both units – wall unit controller on canopy; chest unit controller on bottom-right corner
• Hot gas defrost on both cabinets – self-evaporating drainage; no manual intervention required
• R290 refrigerant & cyclopentane insulation – low-GWP specification on both units
• Dark grey finish – steel exterior on both cabinets; matched across the full 2100mm width
• UK plug, 2m cord on each unit – CB/CE/ERP/ROHS/REACH certified; two separate power connections

Technical Specifications

Wall Unit

Chest Freezer Base
